High pressure alarm on the ventilator: causes and what to do first

A high pressure alarm on a ventilator means the pressure needed to push the set breath in has crossed the alarm limit, and the ventilator has capped or cut that breath at the limit. In a mechanically ventilated adult, that almost always means resistance between the machine and the lungs, or lungs and chest wall that have gotten harder to inflate. Every number below is a reference value, checked against this patient and your protocol.

What to do when the high pressure alarm goes off

A ventilator alarm should never be silenced or ignored before the problem behind it is checked. Work the order below.

1. Check the patient first. Chest rise, symmetry, SpO2, and the capnography waveform tell you in seconds whether this is a real deterioration or the machine reporting something the patient hasn’t felt yet.
2. If the patient is desaturating or unstable, disconnect and bag. StatPearls’ EMS ventilator chapter is direct about it: whenever a vent needs troubleshooting or there’s concern for desaturation or instability, consider taking the patient off the machine and ventilating by hand with a bag-valve-mask. That’s the disconnect step of DOTTS. Manual ventilation has its own downsides, hypo- and hyperventilation, uneven tidal volumes, barotrauma, so it’s a bridge while you find the cause, not the fix itself.
3. Run the tube from teeth to machine. Biting, a kinked tube, and secretions are the resistive causes a hand finds fast; tube depth at the teeth is the compliance cause a glance finds. The same chapter names checking the circuit for obstruction, and sedation and synchrony, as the first prehospital moves once the airway looks clear.
4. Perform an inspiratory hold. Read the peak pressure, let the number settle, and read the plateau. This is the maneuver that separates a tube-and-circuit problem from a lung problem, covered in full below.
5. Act on the branch the hold points to. Resistance and compliance call for different first moves; the fork table below sorts them.
6. Recheck exhaled tidal volume and the EtCO2 waveform once you’ve acted. A breath that was capped at the limit was quietly under-ventilating the patient, and that shows up here first.
7. Don’t raise the alarm limit to make the sound stop. A wider window doesn’t fix what’s crossing the old one. The full ventilator alarms workup, patient first, covers every alarm type in this order.

Compare peak and plateau pressure with an inspiratory hold

Peak inspiratory pressure is the highest pressure reached during the breath, and it reflects airway resistance plus lung and chest wall compliance together. Plateau pressure is the pressure left once flow has stopped at the end of inspiration, and it reflects compliance alone. The gap between the two, resistive pressure, is what an airway or circuit problem adds on top of the lung’s own stiffness.

You get the plateau with an inspiratory hold: pause flow at the end of the breath and let the number settle onto a flat shelf. The ARMA trial (Brower et al., NEJM 2000) defined plateau pressure as the airway pressure measured after a 0.5-second pause at the end of inspiration. Read the settled number, not the peak, as the plateau.

A wide gap between peak and plateau points toward resistance: something in the tube, circuit, or airways. A narrow gap, with both numbers climbing together, points toward a compliance problem in the lung or chest wall itself. Neither this page nor the figure below prints a cutoff number for how wide “wide” is: published sources disagree on where the line sits, so the read stays qualitative, wide versus narrow, not a threshold.

Your transport vent may not show you a plateau

Some transport ventilators build in the maneuver and some don’t. On models with the optional plateau feature, the ZOLL EMV+ 731 series and Z Vent measure it with a held manual breath and display the number for about 20 seconds afterward. The Hamilton-T1 does not offer an inspiratory hold maneuver; the manufacturer states its valveless design can’t produce one, though the device still shows a calculated plateau value as a monitoring parameter on compatible software. If your vent doesn’t expose the maneuver, the fallback is the hand on the bag from step 2 and watching whether peak pressure is climbing while the set volume hasn’t changed. That’s an observation to guide you toward the fork below, not a substitute measurement.

What are the normal peak and plateau pressure values?

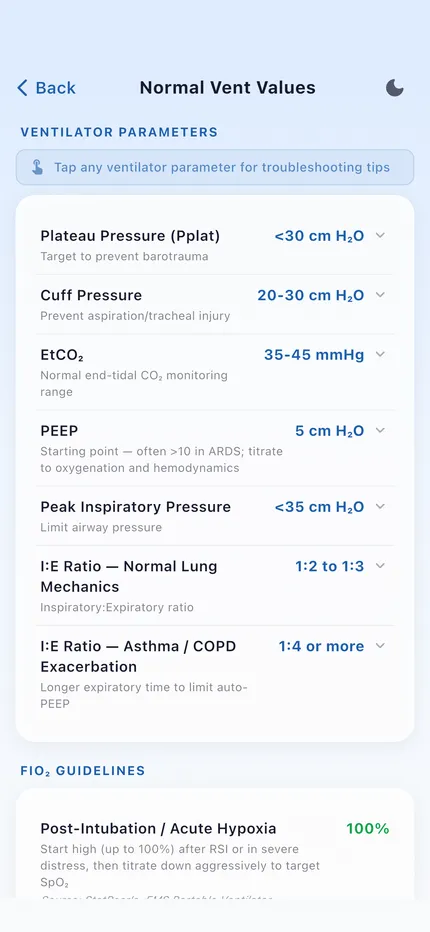

Peak inspiratory pressure is usually kept below 40 cm H2O, per StatPearls’ ventilator safety chapter, and the Joint Trauma System’s guideline for ventilating patients in transport treats a peak above 35 cm H2O as a high pressure alarm, so the working ceiling runs 35 to 40 depending on the source. Plateau pressure is kept at or under 30 cm H2O, the same ceiling the ARDSNet protocol targets. These are two separate numbers from two separate measurements, never one blended range. Normal peak and plateau values on the reference card live alongside the rest of the normal ventilator values. Subtracting PEEP from the plateau gives driving pressure, plateau minus PEEP, a related number this page doesn’t calculate on its own.

What causes high peak pressure on a ventilator?

Either something in the path is resisting the breath, or the lungs and chest wall have become harder to inflate, and the inspiratory hold tells you which.

A plateau that stays high once the airway checks out clean is a lung problem, and the fix is a smaller breath, not a wider alarm window. A patient fighting the vent can look like resistance until sedation and synchrony are addressed; that is a patient bucking the vent. Lungs that can’t finish exhaling raise plateau through auto-PEEP and breath stacking, air trapped from one breath onto the next.

Troubleshoot the transport-specific causes

Transport adds causes a bedside circuit rarely produces, and it takes the RT out of the room. A few are worth naming on their own.

Tube position doesn’t stay fixed once a patient is moving. The NASEMSO national model guidelines call for reassessing airway placement after every patient movement, and head and neck motion alone can shift a tube enough to mainstem it, so tube depth at the teeth is worth a glance after every lift and load. Sedation or analgesia can wear thin mid-transfer too, and light sedation shows up as biting and fighting the vent well before anyone notices the drip ran low.

A breath capped or cut at the pressure limit delivers less volume than you set. How the limit does that depends on the machine: the ZOLL EMV+ 731 series decelerates flow to hold the pressure under the limit for the rest of the set inspiratory time and alarms after two consecutive limited breaths, while the Hamilton-T1 stops flow and opens the expiratory valve the moment the limit is reached, each per its operator’s manual. Watch exhaled tidal volume and the EtCO2 waveform for the tell: a rising EtCO2 signals inadequate ventilation, and hypoventilation on capnography shows as tall, low-frequency waves with a well-defined plateau. That falling volume and rising CO2 is high EtCO2 on the ventilator after truncated breaths. The harm the pressure limit exists to prevent is barotrauma, and a tension pneumothorax on a ventilated patient can drop blood pressure fast enough to cause respiratory arrest, which is why the limit stays a safety net and not a number to raise casually. Rechecking the vent after every patient move covers the rest of what changes at each handoff.

What does it mean when a high pressure alarm repeatedly sounds?

A recurring high pressure alarm is an unresolved cause, not a nuisance. The usual repeat offenders are secretions that return after suctioning, dyssynchrony from sedation that’s worn off, and air trapping in obstructive disease, where each breath lands on top of the last one before it’s fully out.

The settings themselves can be part of the story. Set from a scale weight, a breath runs bigger than the lungs were sized for; the page on tidal volume set from ideal body weight, not scale weight shows why. A rate that leaves too little time to exhale feeds the same air-trapping problem, which is why obstructive patients need a longer I:E ratio on the ventilator for air trapping and COPD vent settings that protect expiratory time. The app behind this page derives its numbers from height and sex, and it has no way to know the chest just got tighter or the sedation just wore off. It runs the arithmetic; reading the alarm in front of you stays yours.

Once the hold has told you tube from lung, the next number worth understanding on its own is the plateau pressure normal range and what a high one means, and the alarm-by-alarm ventilator alarm order lives on the hub page.

Sources

1. Williams LM, Sharma S. Ventilator Safety. In: StatPearls. StatPearls Publishing; updated 2023 Aug 8. https://www.ncbi.nlm.nih.gov/books/NBK526044/
2. Kuhl EA, Perera TB. Prehospital Mechanical Ventilation. In: StatPearls. StatPearls Publishing. https://www.ncbi.nlm.nih.gov/books/NBK537072/
3. Patel BK. Overview of Mechanical Ventilation. Merck Manual Professional Edition; revised June 2026. https://www.merckmanuals.com/professional/critical-care-medicine/respiratory-failure-and-mechanical-ventilation/overview-of-mechanical-ventilation
4. Brower RG, Matthay MA, Morris A, et al. Ventilation with Lower Tidal Volumes as Compared with Traditional Tidal Volumes for Acute Lung Injury and the Acute Respiratory Distress Syndrome. N Engl J Med. 2000;342(18):1301-1308. PubMed 10793162.
5. NIH NHLBI ARDS Clinical Network. Mechanical Ventilation Protocol Summary (the ARDSNet protocol card), via University of Michigan mirror: https://ecosystem.tactuum.com/university-of-michigan/respiratory/ardsnet-mechanical-ventilation-protocol/
6. Wilson JG, Matthay MA. Mechanical Ventilation in Acute Hypoxemic Respiratory Failure: A Review of New Strategies for the Practicing Hospitalist. J Hosp Med. 2014;9(7):469-475. https://pmc.ncbi.nlm.nih.gov/articles/PMC4139286/
7. Baez AA, Qasim Z, Wilcox S, et al. Prehospital Mechanical Ventilation: An NAEMSP Position Statement and Resource Document. Prehosp Emerg Care. 2022;26(sup1):88-95. PubMed 35001824.
8. NASEMSO Medical Directors Council. National Model EMS Clinical Guidelines, Version 3.0. March 2022. Airway Management guideline.
9. Levine A, Mora JI. Positive End-Expiratory Pressure. In: StatPearls. StatPearls Publishing; updated 2025 Sep 14. https://www.ncbi.nlm.nih.gov/books/NBK441904/
10. Pandya NK, Sharma S. Capnography and Respiratory Monitoring (Archived). In: StatPearls. StatPearls Publishing; updated 2023 Aug 28; retained by NCBI for historical reference. https://www.ncbi.nlm.nih.gov/books/NBK539754/
11. Regli A, Pelosi P, Malbrain MLNG. Ventilation in patients with intra-abdominal hypertension: what every critical care physician needs to know. Ann Intensive Care. 2019;9:52. https://pmc.ncbi.nlm.nih.gov/articles/PMC6484068/
12. Tailleur R, et al. Endotracheal tube displacement during head and neck movements. J Clin Anesth. 2016;32:54-58.
13. ZOLL Medical. EMV+ Ventilator Operator’s Guide, 906-0731-01-01 Rev. P.
14. ZOLL Medical. Z Vent Ventilator Operator’s Guide, P/N 9650-002360.
15. Hamilton Medical. HAMILTON-T1 Operator’s Manual, 10103179/03 USA, software 3.0.x, 2024-04-30.
16. Hamilton Medical Knowledge Base. Calculating Pplateau with HAMILTON-C1/T1/MR1 Ventilators. Franz S; 14 July 2017.
17. Frazer MJ, Lanken PN. Ventilator Alarm Situations. In: Lanken PN, et al., eds. The Intensive Care Unit Manual. 2nd ed. Saunders/Elsevier; 2014:457-465.
18. Joint Trauma System. Mechanical Ventilation Basics. Clinical Practice Guideline ID 92. Published 9 April 2025 (supersedes 27 December 2021). https://jts.health.mil/assets/docs/cpgs/Mechnical_Ventilation_Basics_09_Apr_2025_ID92_v1.1.pdf
